White Filler Master Batch Making Machine Twin Screw Granulation Abrasion Resistance

China White Filler Master Batch Making Machine Twin Screw Granulation Abrasion Resistance supplier
White Filler Master Batch Making Machine Twin Screw Granulation Abrasion Resistance supplier White Filler Master Batch Making Machine Twin Screw Granulation Abrasion Resistance supplier White Filler Master Batch Making Machine Twin Screw Granulation Abrasion Resistance supplier

Large Image :  White Filler Master Batch Making Machine Twin Screw Granulation Abrasion Resistance

Product Details:

Place of Origin: China
Brand Name: Yongjie
Certification: CE
Model Number: SJSL75D

Payment & Shipping Terms:

Minimum Order Quantity: 1sets
Price: USD98000-110,000/set
Packaging Details: sea worthy film ( or wooden box per requirements)
Delivery Time: 35-50 days
Payment Terms: L/C, T/T
Supply Ability: 200sets per year
Contact Now
Detailed Product Description
Screw Design: Twin Screw Extruder Plastic Type: PP/PE White Filler Masterbatch
Warranty: One Year Screw Diameter: 71.8mm
Screw & Barrel Material: W6Mo5Cr4V2 Cutting Type: Water Ring Hot Cutting
Capacity: 2000-2500kg/h Color: Blue, White, Or Others

White Filler Masterbatch Manufacturing Machine Twin Screw Granulator Plastic Pelletizer



Water Ring Pelletizer Application:

1. PE, Eva etc + Caco3, talk, Tio92, filling modification and carbon black etc.

2. LDPE, HDPE, LLDPE,MDPE, drivepipe, insulation material, crosslinking material, cable coating material, thermal contraction pipe material etc.

3. PPR pipe compounds, PE crosslinking tube material, TPR, TPU thermoplastic elastomer, EVA and hot melt adhesive etc.

4. PE, ABS, PS, EVA masterbatch etc.

5. ABS, EVA flaming retarding masterbatch etc.

6. PE, PP, PS filling and biodegradable masterbatch, etc.



Quick details

Screw diameter:71mm

Screw material:W6Mo5Cr4V2 high speed tool steel

Barrel diameter:72mm

Barrel material:W6Mo5Cr4V2 high speed tool steel

L/D:48/52:1

Output:2000-2500kg/h

Formula:PE/PP+80-85% caco3+PE wax+additives



Scope of Supply

No. Contents Unit Quantity Marks
1 Twin screw extrusion system set 1
1.1 Feeding system set 1 1.5kw
1.2 SJ-75D Twin screw extruder set 1 250kw, 48:1
1.3 Vacuum venting system set 1 3kw
1.4 Water cycling system set 1 0.75kw
1.5 Automatic screen changer set 1 1.5kw
2 Electric cabinet set 1
3 Water strand auxiliary machine Set 1
3.1 Die head set 1
3.2 Water trough set 1 5M
3.3 Dryer set 1 3kw
3.4 Pelletizer set 1 11kw
4 Water-ring auxiliary system set 1
4.1 Water-ring die head set 1
4.2 Face cutter with guide rail with cover set 1 2.2KW
4.3 Centrifugal dehydrator set 1 7.5KW
4.4 Vibrating sieve set 1 3M
4. Storage bin set 1 Φ1000
5 Documents set 1



Main technical data of various model of twin screw extruder pelletizing machine

Model type Series Barrel Diameter (mm) Screw Diameter (mm) Screw L/D screw speed n(r/min) Main motor power(Kw) Screw torque T(N.m) Torque rating (T/A3) Typical production capacity (kg/h)
SJSL20 A/B 22 21.7 32-44 500/600 4/5.5kw 30/30
SJSL-36 A/B/C/D 36 35.6 32-48 400/600 11/15/18.5/22 125-225 4.6-8.3 30-120
SJSL-51 A/B/C/D 51 50.5 32-52 500/600 45/55/75/90 405-680 5.1-8.5 120-400
SJSL-65 A/B/C/D 63 62.4 32-64 500/600 75/90/110/132 680-1200 4.8-8.5 180-750
SJSL-75 A/B/C/D 72 71 32-64 500/600 110/132/160/250 995-1890 4.6-8.7 300-1200
SJSL-95 A/B/C/D 94 93 32-64 500/600 250/315/450/550 2260-4510 4.7-8.7 700-2500
SJSL-135 A/B/C/D 135 133 32-48 400/500 550/750/900/1200 6200-10800 4.4-7.7 1550-6500

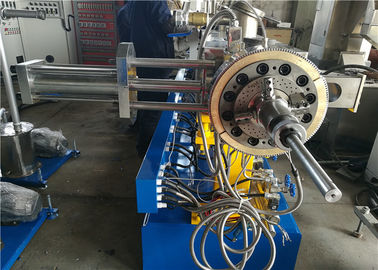

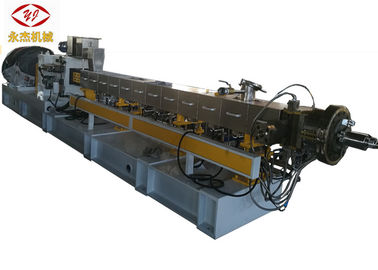

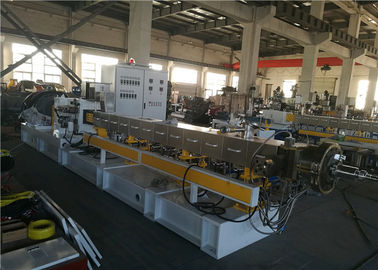

Photo of SJSL75D filler masterbatch machine


White Filler Master Batch Making Machine Twin Screw Granulation Abrasion Resistance


White Filler Master Batch Making Machine Twin Screw Granulation Abrasion Resistance



Company Brief

Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.

QAULITY IS PUT AT THE FIRST , and our factory is certificated to ISO 9001:2008 and CE.
