Payment & Shipping Terms:
|Screw Design:||Twin Screw Extruder||Application:||LDPE, LLDPE, HDPE, PP PE Etc|
|Barrel Diameter:||63mm||Screw Diameter:||62.4mm|
|L/D:||48:1||Material Of Barrel:||45＃forged Steel|
LLDPE LDPE PE PP Water Ring Hot Cutting Polymer Extrustion Machine Plastic Pelletizing Machine
Water Ring Pelletizer Application:
1. PE, Eva etc + Caco3, talk, Tio92, filling modification and carbon black etc.
2. LDPE, HDPE, LLDPE,MDPE, drivepipe, insulation material, crosslinking material, cable coating material, thermal contraction pipe material etc.
3. PPR pipe compounds, PE crosslinking tube material, TPR, TPU thermoplastic elastomer, EVA and hot melt adhesive etc.
4. PE, ABS, PS, EVA masterbatch etc.
5. ABS, EVA flaming retarding masterbatch etc.
6. PE, PP, PS filling and biodegradable masterbatch, etc.
Barrel material: 45＃forged steel with the abrasion-resistant alloy 101 (Ni-Fe-Cr-W) inside that smooth
and abrasion resistant. The hardness is HRC60-64.
Output:500-600kg/h according to different material, formula and technology of process etc.
Reduction ratio: i = 3:1
Transmission gear: Parallel tri-axial structure is combination of reduction and matrix. The gear is made of high quality alloy. It had been treated by cementation heat process, the precision grade can reach6th. It guarantees the tooth surface is high speed, overloading, low noise and high torque.
Drive bearing: The brand of axletree: NSK.
Lubrication: Gear bearings in the gear box will be of oil immersed. There is hydraulic lubrication in the gear engagement and gear bearings.
Cooling: Lubricated cooling adopts shell and tube cooler and circulated water cooling method.
Direction of rotation: Co-rotating
Screw & elements: W6Mo5Cr4V2 (6542#) high speed tool steel that had been treated by the vacuum hardening process with the hardness of the surface is HRC58-62.Molding through dedicated grinding machine. The cleanliness is much better than products out of traditional process.
Core axle: High quality alloy steel 40CrNiMo that with high tenacity and durability. It had been treated by the hardening and tempering process.

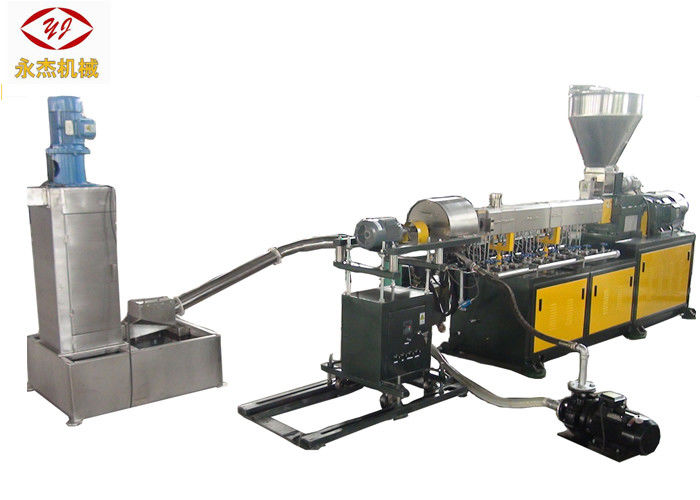

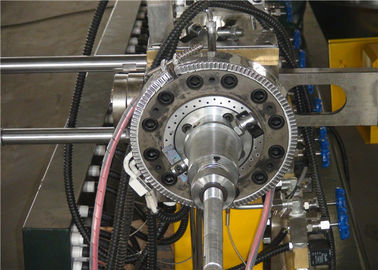

Photo of LLDPE, LDPE, HDPE, TPR Twin Screw Water Ring Pelletizer Plastic Pellet Machine
Main technical data of various model of twin screw extruder pelletizing machine
|Model type||Series||Barrel Diameter (mm)||Screw Diameter (mm)||Screw L/D||screw speed n(r/min)||Main motor power(Kw)||Screw torque T(N.m)||Torque rating (T/A3)||Typical production capacity (kg/h)|
