|Screw Design:||Twin Screw Extruder||Application:||Plastic Pellets|
|Overseas Engineers:||Available For Installation And Comissioning||Screw Diameter:||35.6mm|
SJSL36 35.6mm Small Twin Screw Extruder Polymer Extrusion Machine Manufacturer
Screw material: W6Mo5Cr4V2
Barrel material: 45＃forged steel with the abrasion-resistant alloy 101 (Ni-Fe-Cr-W) inside that smooth
and abrasion resistant. The hardness is HRC60-64.
Output:20-70kg/h according to different material, formula and technology of process etc.
Reduction ratio: i = 2.5:1
Core axle: High quality alloy steel 40CrNiMo that with high tenacity and durability. It had been treated by the hardening and tempering process.
Barrel diameter:36mm, The first section works for main feeding, the fifth section is set up for venting naturally, and the eighth section is set up for vacuum venting and others are blocked.
Scope of supply
|1||High speed mixer||set||1|
|2||Twin screw extrusion system||set||1|
|2.2||SJ-36 Twin screw extruder||set||1||22kw, 44:1|
|2.3||Vacuum venting system||set||1||0.75kw|
|2.4||Water cycling system||set||1||0.55kw|
|2.5||Manual screen changer||set||1|
|4||Water stand auxiliary system||set||1|
|4.2||Water trough||set||1||3 M|

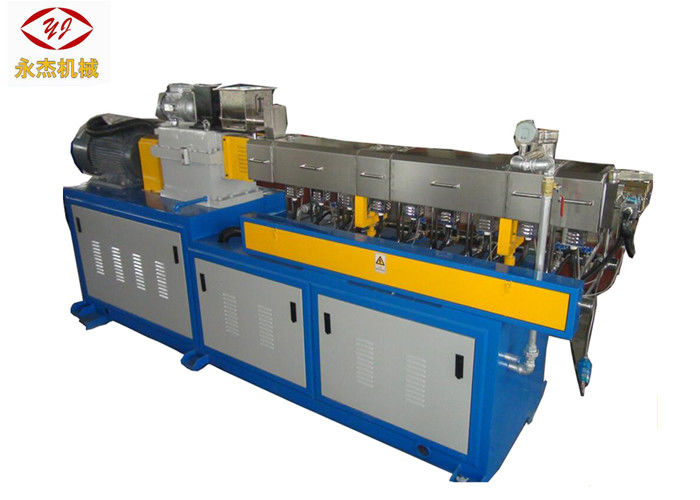

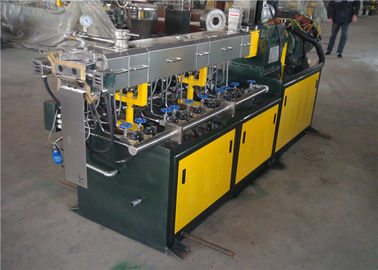

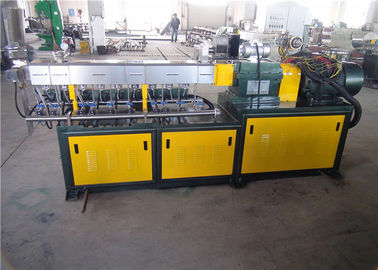

Photo of SJSL36 lab mini extruder plastic pelletizing machine
Main technical data of various model of twin screw extruder pelletizing machine
|Model type||Series||Barrel Diameter (mm)||Screw Diameter (mm)||Screw L/D||screw speed n(r/min)||Main motor power(Kw)||Screw torque T(N.m)||Torque rating (T/A3)||Typical production capacity (kg/h)|
Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.
The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.
