Product Details:
Payment & Shipping Terms:
|
| Screw Design: | Twin Screw Extruder | Application: | PE,PP Etc+caco3 Filling |
|---|---|---|---|
| Warranty: | One Year | Lead Time: | 30 Working Days After Deposit |
| Screw Diameter: | 50.5mm | Screw & Barrel Material: | W6Mo5Cr4V2 |
| Motor: | 45kw | Capacity: | 100-250kg/h |
ABB Inverter Water Ring Pelletizer Twin Screw Extruder One Year Warranty
Water Ring Pelletizer Application:
1. PE, Eva etc + Caco3, talk, Tio92, filling modification and carbon black etc.
2. LDPE, HDPE, LLDPE,MDPE, drivepipe, insulation material, crosslinking material, cable coating material, thermal contraction pipe material etc.
3. PPR pipe compounds, PE crosslinking tube material, TPR, TPU thermoplastic elastomer, EVA and hot melt adhesive etc.
4. PE, ABS, PS, EVA masterbatch etc.
5. ABS, EVA flaming retarding masterbatch etc.
6. PE, PP, PS filling and biodegradable masterbatch, etc.
Quick details of sjsl36 water ring pelletizer
Screw diameter:35.6mm
Screw material:W6Mo5Cr4V2
Barrel diameter:36mm
Barrel material:W6Mo5Cr4V2
Motor power:15kw
Motor brand: SIEMENS
L/D:44:1
Output:30-80kg/h
1). Diameter: ￠51mm,
2). Structure: The first section works for main
feeding, the fifth section is set up for venting naturally
and the tenth section is set up for vacuum venting and
others are blocked.
2). Material: The material of the barrel is made of
38CrMoAl nitriding steel.
3). Heating: Adopt multiple step format electric
heating. The first and the second zone and the machine
head zone are cast copper heater and others are cast
aluminum heater. The total heating power is 28kw and
the max heating capacity every section can reach
500 ℃.
4). Cooling: Adopt soft water cooling system in the
barrel and tap water cooling way outside barrel. The
circulation pipes are made of stainless steel and the
water inflow regulating valves are stainless valves.
The brand of electromagnetic valve is DANFOSS.
5)Length:190*11=2090mm
Scope of supply of sjsl36 water ring pelletizer
| No. | Contents | Unit | Quantity | Marks |
| 1 | 100L high speed mixer | set | 1 | |
| 2 | Twin screw extrusion system | set | 1 | |
| 2.1 | Feeding system | set | 1 | 0.75kw |
| 2.2 | SJ-51 Twin screw extruder | set | 1 | 45kw, 44:1 |
| 2.3 | Vacuum venting system | set | 1 | 1.5kw |
| 2.4 | Water cycling system | set | 1 | 0.55kw |
| 2.5 | Automatic screen changer | set | 1 | 1.5kw |
| 3 | Electric cabinet | set | 1 | |
| 4 | Water-ring auxiliary system | set | 1 | |

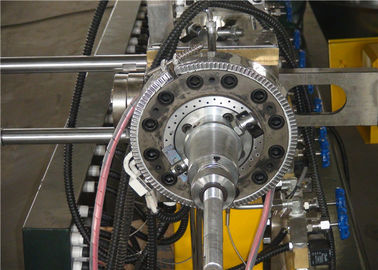

| 4.1 | Water-ring die head | set | 1 | |
| 4.2 | Face cutter with guide rail & cover | set | 1 | 1.5KW |
| 4.3 | Centrifugal dehydrator | set | 1 | 4KW |
| 4.4 | Vibrating sieve | set | 1 | 0.4KW |
| 4.5 | Storage bin | set | 1 | |
| 5 | Documents | set | 1 |

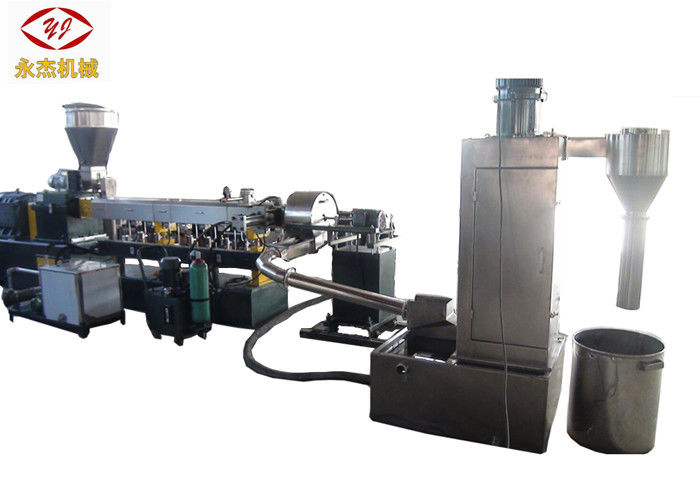

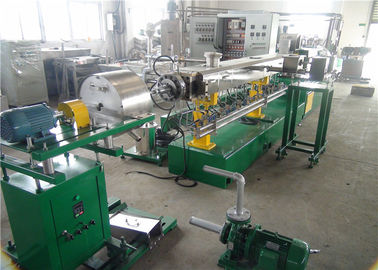

Photo of machine
Main Technical Details of Plastic Pelletizing Machine Models
| Model type | Series | Barrel Diameter (mm) | Screw Diameter (mm) | Screw L/D | screw speed n(r/min) | Main motor power(Kw) | Screw torque T(N.m) | Torque rating (T/A3) | Typical production capacity (kg/h) |
| SJSL-36 | A/B/C/D | 36 | 35.6 | 32-48 | 400/600 | 11/15/18.5/22 | 125-225 | 4.6-8.3 | 30-120 |
| SJSL-51 | A/B/C/D | 51 | 50.5 | 32-52 | 500/600 | 45/55/75/90 | 405-680 | 5.1-8.5 | 120-400 |
| SJSL-65 | A/B/C/D | 63 | 62.4 | 32-64 | 500/600 | 75/90/110/132 | 680-1200 | 4.8-8.5 | 180-750 |
| SJSL-75 | A/B/C/D | 72 | 71 | 32-64 | 500/600 | 110/132/160/250 | 995-1890 | 4.6-8.7 | 300-1200 |
| SJSL-95 | A/B/C/D | 94 | 93 | 32-64 | 500/600 | 250/315/450/550 | 2260-4510 | 4.7-8.7 | 700-2500 |
| SJSL-135 | A/B/C/D | 135 | 133 | 32-48 | 400/500 | 550/750/900/1200 | 6200-10800 | 4.4-7.7 | 1550-6500 |
