Payment & Shipping Terms:
|Screw Design:||Twin Screw Extruder||Application:||Plastic Pellets|
|Warranty:||One Year||Overseas Engineers:||Available For Installation And Comissioning|
|Air Transmission System:||Two Stages||Capacity:||1000-1500kg/h|
Iron Oxide Fe2O3 Plastic Pellets Twin Screw Extruder Machine Plastic Extrusion Machine
Scope of supply
|1||High speed mixer||set||1||800L|
|2||Screw feeder machine||set||1||2.2kw|
|3||Twin screw extrusion system||set||1|
|3.2||SJ-95Twin screw extruder||set||1||280kw, 48:1|
|3.3||Vacuum venting system||set||1||4kw|
|3.4||Water cycling system||set||1||1.5kw|
|3.5||Automatic screen changer||set||1||2.2kw|
|5||Air-cooling auxiliary system||set||1|
|5.3||Two-stage conveying system||set||1||15kw|
Barrel diameter: 94mm
Output:1000-1500kg/h according to different material, formula and technology of process etc.
Cutting way: air cooling hot cutting
Lead time:45 days after deposit

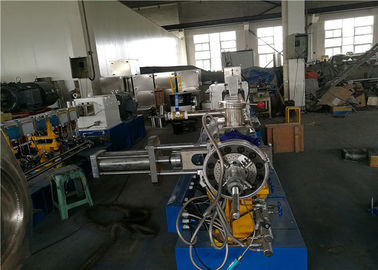

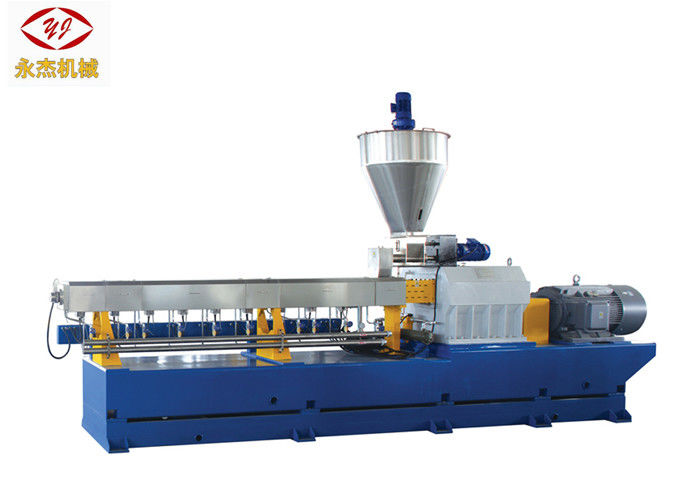

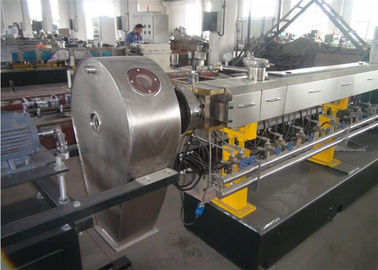

Photo of machine
Main technical data of various model of twin screw extruder pelleitizing machine
|Model type||Series||Barrel Diameter (mm)||Screw Diameter (mm)||Screw L/D||screw speed n(r/min)||Main motor power(Kw)||Screw torque T(N.m)||Torque rating (T/A3)||Typical production capacity (kg/h)|
Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.
The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.
How to choose machine for plastic pellet?
1. Just tell us your rough formula, like 30% PE + 70% corn startch + additives etc.
2. Your expected output per hour of the mahcine
