Payment & Shipping Terms:
|Screw Design:||Twi-single Screw Extruder||Application:||Carbon Black Master Batch|
|Warranty:||One Year||Overseas Engineers:||Available For Installation And Comissioning|
|Capacity:||500-700kg/h||Cutting Way:||Water Ring Hot Cutting|
Carbon Black Two Stage Extruder Plastic Pellet Machine Screw Diameter 71mm/180mm
Power:132kw for twin screw exturder, 55kw for single screw extruder
Screw diameter:71mm for twin screw extruder, 180mm for single screw submachine
L/D:48:1 & 9:1
Output:500-700kg/h according to different material, formula and technology of process etc.
Cutting way:water ring
Lead time:45 days after deposit
Motor : AC motor, power: 110KW, brand: SIEMENS BEIDE;
Speed governing: Inverter control speed;
Reduction ratio: i = 3:1;
Transmission gear: Parallel tri-axial structure is combination of
reduction and matrix.
The gear is made of high quality alloy (20CrNi2Mo). It had been treated
by cementation heat process, the precision grade can reach 6th. It
guarantee the tooth surface is high speed, overloading, low noise and high
Drive bearing: The brand of axletree: Japanese NSK.
Lubrication: Gear bearings in the gear box will be of oil immersed. There
is hydraulic lubrication in the gear engagement and gear bearings.
Cooling: Lubricated cooling adopts shell and tube cooler and circulated
water cooling method.
World famous brands of electronic components
1). Temperature control meter is Japanese RKC meter, intelligent type, double channel;
2). The inverter of extruder is ABB;
3). The low-voltage apparatus and the button adopt SCHNEIDER product;
4). AC contactor adopt SIEMENS product;
5). The main motor is SISMENS BEIDE;
6). The air switch adopts CHINT products. The solid-state relays are from American joint venture brand;
7). The electromagnetic valve: adopt Denmark DANFOSS product.
Lead time:45 days after deposit
Engineers available for overseas installation, commissioning etc
Payment term:30% deposit via TT, 70% balance before shipment after testing and qualifying machine at seller's manufacturer, L/C payment are negotiable

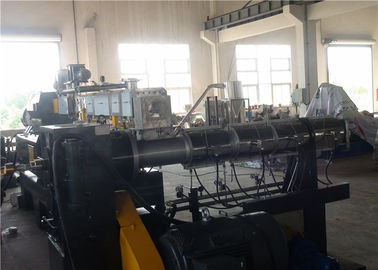

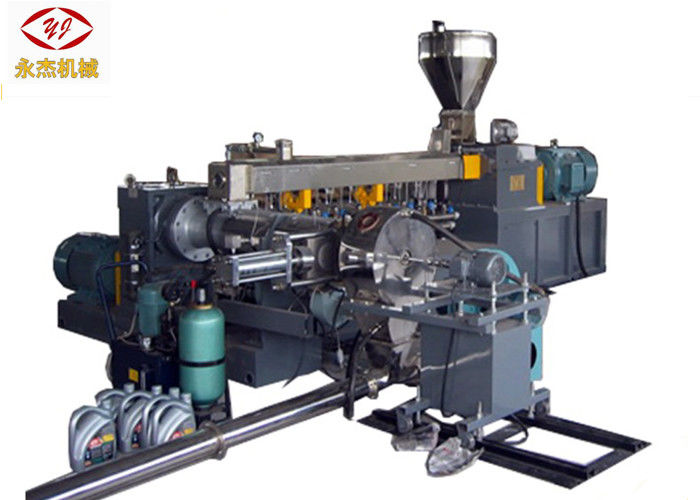

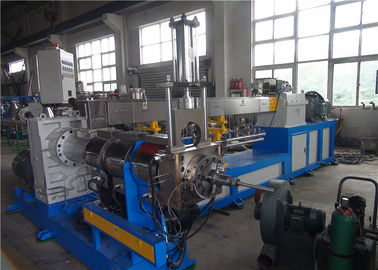

Photo of two stage cable material plastic pelletizing machine
Main technical data of various model of twin screw extruder pelleitizing machine
|Model type||Screw Diameter (mm)||Screw L/D||screw speed n(r/min)||Main motor power(Kw)||Typical production capacity (kg/h)|
Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.
The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.
