|Screw Design:||Twi-single Screw Extruder||Application:||LDPE+85-90%MDH|
|Internal Mixer:||110L||Color:||Any Color|
|Capacity:||-500kg Per Hour||Cutting Way:||Two Stage Air Cooling Die Face|
LDPE+MDH ZL75-180 Two Stage Pelletizing Extruder With Internal Mixer Bucket Elevator
Power:132kw for twin screw exturder, 55kw for single screw extruder
Screw diameter:71mm for twin screw extruder, 180mm for single screw submachine
L/D:48:1 & 9:1
Output:200-350kg/h according to different material, formula and technology of process etc.
Cutting way: air cooling die face
Lead time:45 days after deposit
Transmission gear: Parallel tri-axial structure is combination of reduction and matrix. The gear is made of high quality alloy (20CrNi2Mo). It had been treated by cementation heat process, the precision grade can reach6th. It guarantee the tooth surface is high speed, over loading, low noise and high torque.
Drive bearing: The brand of axletree: NSK.
Lubrication: Gear bearings in the gear box will be of oil immersed. There is hydraulic lubrication in the gear engagement and gear bearings.
Cooling: Lubricated cooling adopts shell and tube cooler and circulated water cooling method.
Scope of supply
|1||110L Internal mixer||set||1||110L|
|3||Conical twin screw feeder||set||1||11kw|
|4||SJ75 twin screw extruder||set||1||132KW, 48:1|
|4.2||Vacuum venting system||set||1||2.2KW|
|4.3||Water cycling system||set||1||0.55KW|
|5||YD180 single screw extruder||set||1||55KW, 9:1|
|5.1||Hydraulic screen changer||set||1||1.5KW|
|7||Air-cooling assembly system||set||1|
|7.2||Face cutter with cutting wagon||set||1||1.5KW|
|7.3||Air cooling cutting cover||set||1|
|7.4||Second stage conveying system||set||1||4kw+4kw|
|7.6||First stage product container||set||1||4kw|

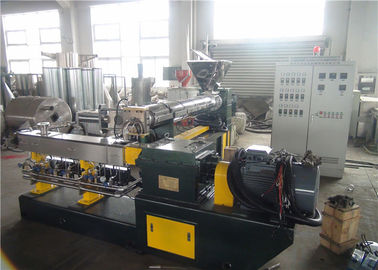

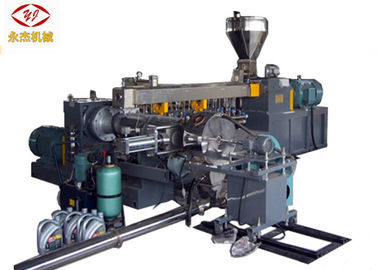

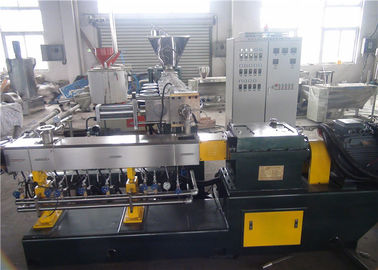

Photo of pvc pelletizing machine plastic extrustion machine
Main technical data of various model of twin screw extruder pelleitizing machine
|Model type||Screw Diameter (mm)||Screw L/D||screw speed n(r/min)||Main motor power(Kw)||Typical production capacity (kg/h)|
