Product Details:
Payment & Shipping Terms:
|
| Screw Design: | Twin Screw Extruder | Application: | PP PE With Caco3, Talc Etc Filler Masterbatch |
|---|---|---|---|
| Warranty: | One Year | Lead Time: | 45 Days After Deposit |
| Barrel Diameter: | 91mm | Screw & Barrel Material: | W6Mo5Cr4V2 |
| Motor: | 280kw | Capacity: | 1000-2000kg/h |
1000-2000kg Per Hour Masterbatch Water Ring Pelletizer Plastic Twin Screw Extruder
Water Ring Pelletizer Application:
1. PE, Eva etc + Caco3, talk, Tio92, filling modification and carbon black etc.
2. LDPE, HDPE, LLDPE,MDPE, drivepipe, insulation material, crosslinking material, cable coating material, thermal contraction pipe material etc.
3. PPR pipe compounds, PE crosslinking tube material, TPR, TPU thermoplastic elastomer, EVA and hot melt adhesive etc.
4. PE, ABS, PS, EVA masterbatch etc.
5. ABS, EVA flaming retarding masterbatch etc.
6. PE, PP, PS filling and biodegradable masterbatch, etc.
Quick details of sjsl36 water ring pelletizer
Screw diameter:91mm
Screw material:W6Mo5Cr4V2
Barrel diameter:93mm
Barrel material:W6Mo5Cr4V2
Motor power:280kw
Motor brand:SIEMENS
L/D:48:1
Output:1000-2000kg/h
Work condition (provided by customer)
| Warehouse/Workshop |
Dimension (M*M*M): 20 (Length)×3 (width) ×2.5 (Height) Crane: Machine positioning |
| Temperature | ≤40℃ |
| Power supply & Installation power | 3-phase, 380V, 50HZ (can be customized) |
| Wire/cables |
Wires/cables from power supply to control cabinet of this production line; All electrical cables from control cabinet to each machine. |
| Cooling Water hose/pipe | Water supply to machines and pools. Creating a pool (4-6m3) outside the workshop, using water pump to make recycling water. |
| Weight | Extruder: ~9.5T, sub-machine: 2.5T |
Main parts and technical parameters
| No. | Contents | Unit | Quantity | Marks |
| 1 | Twin screw extrusion system | set | 1 | |
| 1.1 | Feeding system | set | 1 | 2.2kw |
| 1.2 | Mesh type side feeder | set | 2 | |
| 1.3 | SJ-95Twin screw extruder | set | 1 | 280kw, 48:1 |
| 1.4 | Vacuum venting system | set | 1 | 4kw |
| 1.5 | Water cycling system | set | 1 | 1.5kw |
| 1.6 | Automatic screen changer | set | 1 | 2.2kw |
| 2 | Electric cabinet | set | 1 | |
| 3 | Water-ring auxiliary system | set | 1 | |
| 3.1 | Die head | set | 1 | |
| 3.2 | Face cutter | set | 1 | 2.2kw |
| 3.3 | Dehydrator | set | 1 | 11kw |
| 3.4 | Vibrating sieve | set | 1 | 0.74kw |
| 3.5 | Production silo | set | 1 | 5.5kw |
| 4 | Documents | set | 1 |

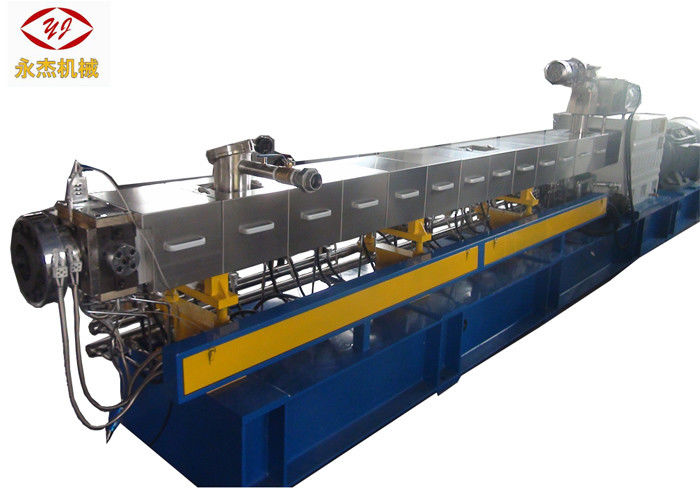

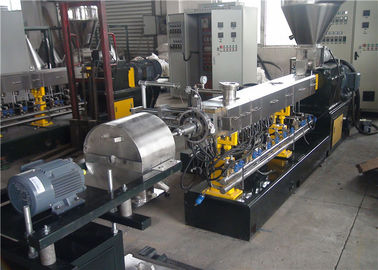

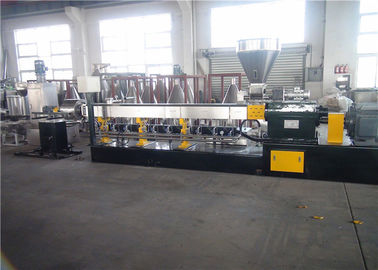

Photo of machine
Main Technical Details of Various Water Ring Pelletizer Models
| Model type | Series | Barrel Diameter (mm) | Screw Diameter (mm) | Screw L/D | screw speed n(r/min) | Main motor power(Kw) | Screw torque T(N.m) | Torque rating (T/A3) | Typical production capacity (kg/h) |
| SJSL-36 | A/B/C/D | 36 | 35.6 | 32-48 | 400/600 | 11/15/18.5/22 | 125-225 | 4.6-8.3 | 30-120 |
| SJSL-51 | A/B/C/D | 51 | 50.5 | 32-52 | 500/600 | 45/55/75/90 | 405-680 | 5.1-8.5 | 120-400 |
| SJSL-65 | A/B/C/D | 63 | 62.4 | 32-64 | 500/600 | 75/90/110/132 | 680-1200 | 4.8-8.5 | 180-750 |
| SJSL-75 | A/B/C/D | 72 | 71 | 32-64 | 500/600 | 110/132/160/250 | 995-1890 | 4.6-8.7 | 300-1200 |
| SJSL-95 | A/B/C/D | 94 | 93 | 32-64 | 500/600 | 250/315/450/550 | 2260-4510 | 4.7-8.7 | 700-2500 |
| SJSL-135 | A/B/C/D | 135 | 133 | 32-48 | 400/500 | 550/750/900/1200 | 6200-10800 | 4.4-7.7 | 1550-6500 |
Company Brief
Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.
QAULITY IS PUT AT THE FIRST , and our factory is certificated to ISO 9001:2008 and CE.
